- ASROCK
- Ново
Цена
€160 60 / 314 11 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.asrock.com/MB/AMD/B650%20Rock%20WiFi%207/index.asp?utm_source=chatgpt.com#Overview
Model

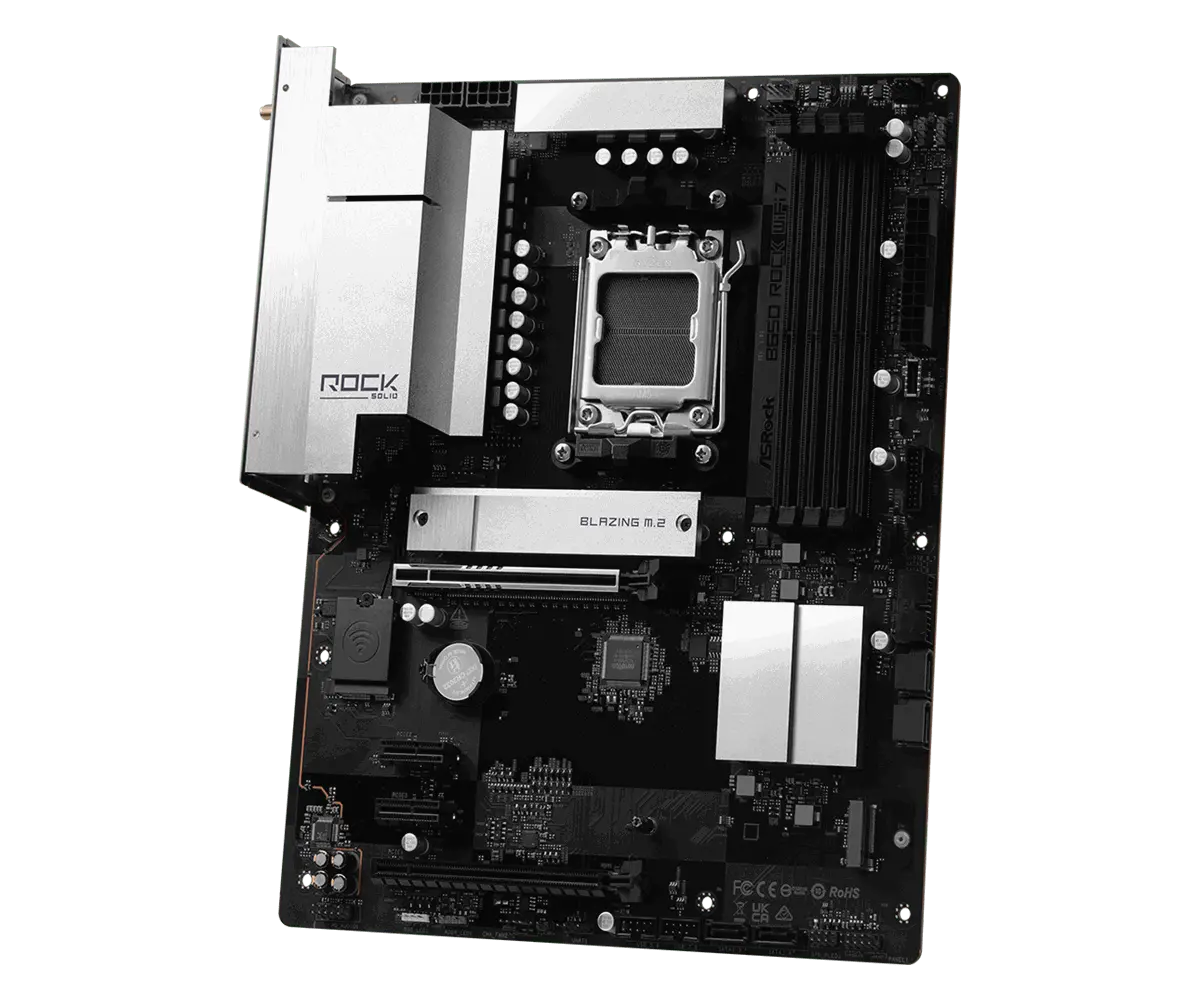

B650 Rock WiFi 7
Socket
AMD AM5
Graphics
Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
CPU's supported
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Chipset
AMD B650
Expansion slots
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
- 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode
Chipset:
- 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 4 x SATA3 6.0 Gb/s Connectors
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Memory type
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
Max. capacity of system memory: 256GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

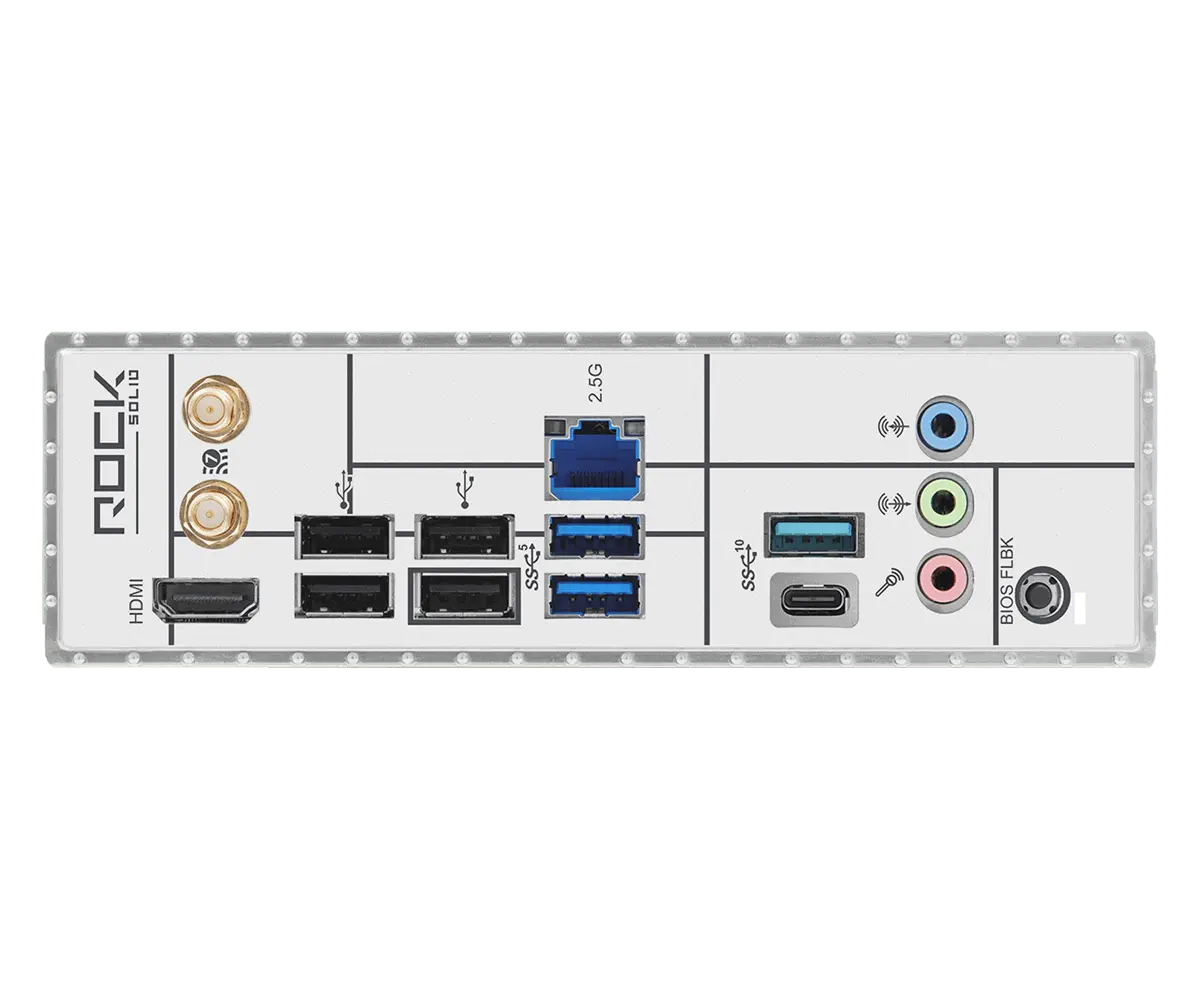

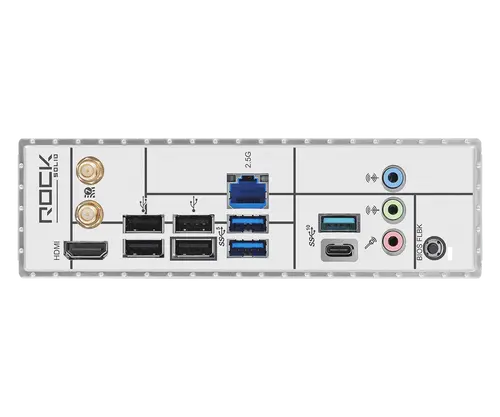

Rear panel I/O
2 x Antenna Ports
1 x HDMI Port
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
USB
CPU:
- 1 x USB 3.2 Gen2 Type-C (Rear)
- 1 x USB 3.2 Gen2 Type-A (Rear)
- 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1))
Chipset:
- 1 x USB 3.2 Gen1 Type-C (Front)
- 5 x USB 3.2 Gen1 Type-A (1 Rear (USB32_2), 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
Connectors
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Lan
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control
Wireless
802.11be 2x2 Wi-Fi 7 Module
Supports IEEE 802.11a/b/g/n/ac/ax/be
Supports 2.4GHz/5GHz/6GHz frequency band
Supports 160MHz channel bandwidth with 6GHz frequency band
1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.4
Supports MU-MIMO
Bluetooth
Supports Bluetooth 5.4
BIOS
512Mb AMI UEFI Legal BIOS with GUI support
Form factor
ATX, 8 Layer PCB
OS
Microsoft Windows® 10 64-bit / 11 64-bit
Other
Superb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 9+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC
- Pre-Installed I/O Shield
Ultrafast Connectivity
- 2.5G LAN, 802.11be Wi-Fi 7 Module
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
Dimensions
30.5 cm x 24.4 cm
Данни, подадени от официалния вносител за България.
| Атрибут | Стойност |
|---|---|
| Socket | AMD AM5 |
| Vendor_url | https://www.asrock.com/MB/AMD/B650%20Rock%20WiFi%207/index.asp?utm_source=chatgpt.com#Overview |
| Chipset | AMD B650 |
| OS | Microsoft Windows® 10 64-bit / 11 64-bit |
| CPU's supported | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Memory type | Dual Channel DDR5 Memory Technology |
| Memory type | 4 x DDR5 DIMM Slots |
| Memory type | Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) |
| Memory type | Max. capacity of system memory: 256GB |
| Memory type | Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Form Factor | ATX, 8 Layer PCB |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Rear panel I/O | 1 x HDMI port |
| Rear panel I/O | 4 x USB 2.0 Ports |
| Rear panel I/O | 1 x RJ-45 LAN Port |
| Rear panel I/O | 1 x BIOS Flashback Button |
| Rear panel I/O | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Rear panel I/O | 2 x Antenna Ports |
| Rear panel I/O | 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) |
| Rear panel I/O | 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) |
| Rear panel I/O | 2 x USB 3.2 Gen1 Ports |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| LAN | Dragon RTL8125BG |
| LAN | Smart Auto Adjust Bandwidth Control |
| LAN | Visual User Friendly UI |
| LAN | Visual Network Usage Statistics |
| LAN | Optimized Default Setting for Game, Browser, and Streaming Modes |
| LAN | User Customized Priority Control |
| LAN | Supports Dragon 2.5G LAN Software |
| Model | B650 Rock WiFi 7 |
| Expansion Slots | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Expansion Slots | Chipset: |
| Expansion Slots | CPU: |
| Expansion Slots | - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode |
| Expansion Slots | - 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3) |
| Expansion Slots | - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode |
| Dimensions | 30.5 cm x 24.4 cm |
| Wireless | Supports MU-MIMO |
| Wireless | 802.11be 2x2 Wi-Fi 7 Module |
| Wireless | 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology |
| Wireless | Supports Bluetooth 5.4 |
| Wireless | Supports 2.4GHz/5GHz/6GHz frequency band |
| Wireless | Supports 160MHz channel bandwidth with 6GHz frequency band |
| Wireless | Supports IEEE 802.11a/b/g/n/ac/ax/be |
| Graphics | - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) |
| Other | Superb Productivity |
| Other | Rock-Solid Durability |
| Other | Ultrafast Connectivity |
| Other | EZ Update |
| Other | EZ Troubleshooter |
| Other | - ASRock Auto Driver Installer |
| Other | - PCIe Gen5 (Graphics, M.2) |
| Other | - Dual Channel DDR5 |
| Other | - BIOS Flashback Button |
| Other | - ASRock Post Status Checker |
| Other | - Pre-Installed I/O Shield |
| Other | - 9+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC |
| Other | - 2.5G LAN, 802.11be Wi-Fi 7 Module |
| BIOS | 512Mb AMI UEFI Legal BIOS with GUI support |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors |
| Storage | CPU: |
| Storage | Chipset: |
| Storage | - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode |
| Storage | - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode |
| Bluetooth | Supports Bluetooth 5.4 |
| Connectors | 1 x SPI TPM Header |
| Connectors | 1 x Power LED and Speaker Header |
| Connectors | 1 x 24 pin ATX Power Connector |
| Connectors | 1 x Front Panel Audio Connector |
| Connectors | 1 x RGB LED Header |
| Connectors | 3 x Addressable LED Headers |
| Connectors | 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) |
| Connectors | 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) |
| Connectors | 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) |
| Connectors | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| Connectors | 1 x Front Panel Type C USB 3.2 Gen1 Header |
| Connectors | 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
| Connectors | 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) |
| USB | CPU: |
| USB | Chipset: |
| USB | - 1 x USB 3.2 Gen1 Type-C (Front) |
| USB | - 8 x USB 2.0 (4 Rear, 4 Front) |
| USB | - 1 x USB 3.2 Gen2 Type-C (Rear) |
| USB | - 1 x USB 3.2 Gen2 Type-A (Rear) |
| USB | - 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1)) |
| USB | - 5 x USB 3.2 Gen1 Type-A (1 Rear (USB32_2), 4 Front) |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Тегло | 0.00кг |
Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.
